WELLAV



WELLAV SYSTEMS, THE RELIABLE- & COST-EFFECTIVE SOLUTION FOR

ENCODER - RECEIVER - STREAMING-MEDIA-PLATFORMS - TRANSCODER

The SENCORE / WELLAV systems are used by a wide range of our Customers, the manufacturer WELLAV – SENCORE are a trusted and well known US / China based company with excellent support and reliable systems !

The Wellav broadcast equipment provide cost-effective, reliable and comprehensive video delivery solutions for small and medium-size operators.  Most platforms utilize flexible modular configurations, which makes them the perfect solutions for any decoding, encoding, transcoding, receiving and modulating applications.


WELLAV RECEIVER DECODER UMH160R


The UMH160R is a professional, powerful and cost-effective broadcast level receiver /decoder

  • Supports MPEG2, MPEG4, SD, HD, 4:2:0 decoding, Two audio channels
  • Web-based management interface
  • Suitable for any headend system

** Signal receiving and decoding
** Multi-channel descrambling
** Multiplexing and external table/data insertion
** Transcoding and transmodulating

Supports advanced content distribution, real-time signal conversion and transmission for any headend system

wellav-umh160R-datasheet


WELLAV CMP100 Video headend in 4 RU


CMP100 is a brand new Common Media Platform with combination of receiving, descrambling, encoding, multiplexing and modulation

The most powerful video headend perfect for hotels, schools, hospitals, and MDU

Flexible and feature-rich to meet the needs of professional and commercial CATV and IPTV systems

  • Up to 16 Hot-swappable modules
  • Dual Power supply
  • Service level monitoring
  • Remote network management

** Encoding
** Receiving
** Scrambling
** Multiplexing

wellav-cmp100-datasheet


WELLAV CMP200 POWERFUL VIDEO HEADEND in 1RU

New generation media platform, modular, cost-effective design for TV- and traditional DTV market. Used at hotels, hospital, community, club, campus and DTV headend room

High-density, strong performance, flexibility

  • Proven head-end technology in 1RU chassis and supports:
  • Dual power supply (CMP201D) - optional
  • 8-CH QAM/DTMB/OFDM modulation module on front panel (CMP203) -optional
  • 4 GbE Ethernet ports (2 for management, 2 for IP stream in/out)
  • 6 slots for hot-swappable functional modules in rear
  • up to 24 HDMI HD encoding,   up to 48 CVBS SD encoding
  • up to 24 DVB-C/DTMB/DVB-S/S2,  DVB-T/T2/8VSB/ISDB-T receiving
  • up to 48 CH modulation outputs

** Signal receiving
** Descrambling
** Encoding
** Multiplexing
** Modulation
** IP processing

wellav-cmp200-datasheet

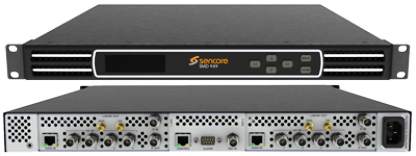

SENCORE SMD 989 PROFESSIONAL SATELLITE MODULATOR

Ideal for MPEG Transport Stream transmission using DVB-S/S2/S2X, 8/16/32/64APSK. Build-in TR101 290 error checking,  BISS scrambling and  the L-Band upconverter make the SMD an ideal solution for video delivery

  • Highly efficient S2X modulation schemes and roll off factors
  • Broadcom TurboPSK modulation modes
  • Ability to modulate 1 to 6 multistream transport streams on a single carrier
  • L-band and IF outputs
  • Optional diplexed 10MHz and DC power on L-band
  • Front panel and web GUI for easy configuration
  • ASI and IP inputs
  • Available with dual, redundant power supply

APPLICATIONS

** News Gathering
Quick to boot, easy-to-use, robust platform
Support for stored presets
Carrier ID (DVB-CID) standard

** Uplink Facility Deployment
TR 101 290 failover for redundant encoder support
Dual power supply option for high reliability
Full control and monitoring via SNMP

sencore-smd989-datasheet


Contact us for any inquiries
